The base class for value objects. More...

#include <Valuable/Attribute.hpp>

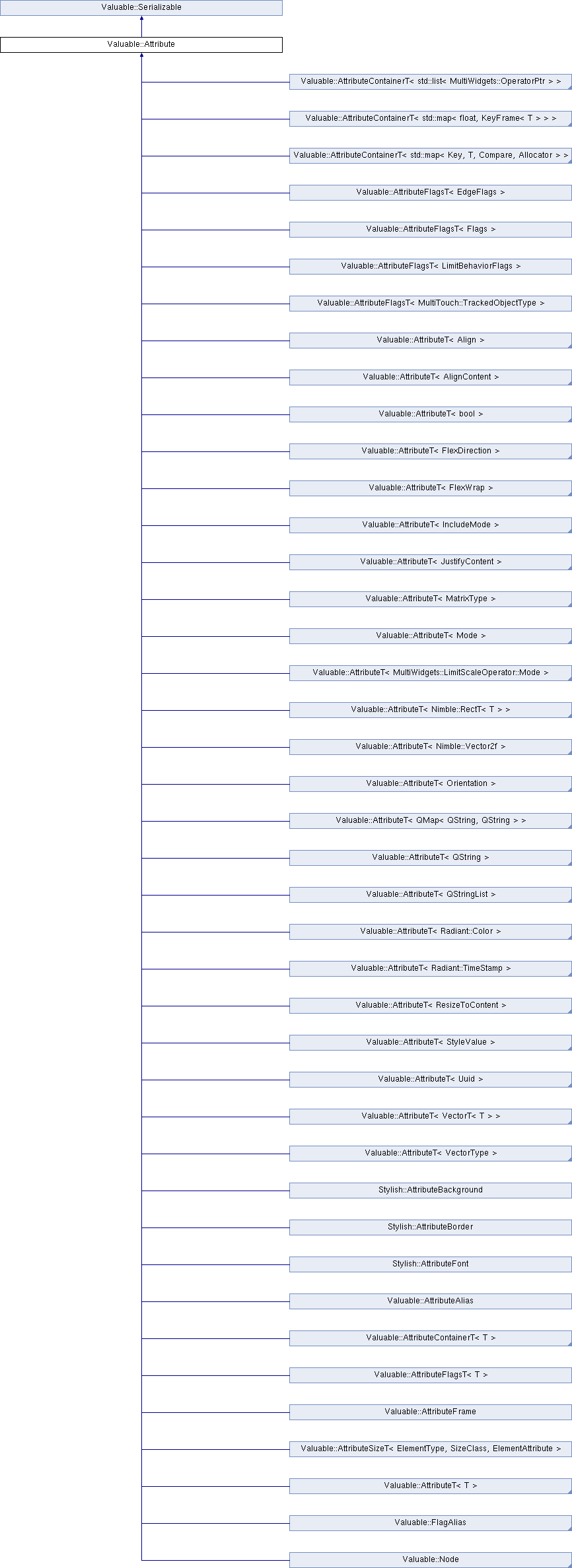

Inheritance diagram for Valuable::Attribute:

Public Types
enum	Layer { DEFAULT = 0, STYLE, USER, STYLE_IMPORTANT, LAYER_COUNT, LAYER_CURRENT }
	Attribute has multiple independent attribute values on LAYER_COUNT different layers. More...

typedef std::function< void()>	ListenerFunc
	Callback function type in the listener API.

enum	ListenerRole { DELETE_ROLE = 1 << 0, CHANGE_ROLE = 1 << 1, ALL_ROLES = (CHANGE_ROLE << 1) -1 }
	Different listener roles, used when adding a new listener.

enum	ValueUnit { VU_UNKNOWN, VU_PXS, VU_PERCENTAGE, VU_EMS, VU_EXS }
	Units of a value. More...

Public Member Functions
long	addListener (ListenerFunc func, int role=CHANGE_ROLE)
	Adds a listener that is invoked whenever the value is changed. More...

long	addListener (Node *listener, ListenerFunc func, int role=CHANGE_ROLE)
	Adds a listener that is invoked whenever the value is changed. More...

long	addListener (v8::Persistent< v8::Function > func, int role=CHANGE_ROLE)
	Adds a JavaScript listener that is invoked whenever the value is changed. More...

virtual float	asFloat (bool *const ok=0, Layer layer=LAYER_CURRENT) const
	Converts the value object in a floating point number. More...

virtual int	asInt (bool *const ok=0, Layer layer=LAYER_CURRENT) const
	Converts the value object in an integer. More...

virtual QString	asString (bool *const ok=0, Layer layer=LAYER_CURRENT) const
	Converts the value object to a string. More...

	Attribute (const Attribute &o)
	Create a copy of the given Attribute WITHOUT the link to host, listeners, or the attribute name. More...

	Attribute (Node *host, const QByteArray &name, bool transit=false)
	Constructs a new value object and attaches it to its host. More...

virtual Attribute *	attribute (const QByteArray &name) const
	Gets an Attribute with the given name. More...

virtual void	clearValue (Layer layer)
	Unsets the value from a specific layer. More...

virtual void	emitChange ()
	Invokes the change valueChanged function of all listeners.

virtual void	eventProcess (const QByteArray &id, Radiant::BinaryData &data)
	Process a message. More...

void	eventProcessFloat (const char *id, float v)
	Utility function for sending a float message to the object.

void	eventProcessInt (const char *id, int v)
	Utility function for sending an int message to the object.

void	eventProcessString (const char *id, const QString &str)
	Utility function for sending string message to the object.

void	eventProcessString (const char id, const char str)
	Utility function for sending string message to the object.

void	eventProcessVector2 (const char *id, Nimble::Vector2)
	Utility function for sending a Nimble::Vector2f message to the object.

void	eventProcessVector3 (const char *id, Nimble::Vector3)
	Utility function for sending a Vector3 message to the object.

void	eventProcessVector4 (const char *id, Nimble::Vector4)
	Utility function for sending a Vector4 message to the object.

virtual bool	handleShorthand (const Valuable::StyleValue &value, Radiant::ArrayMap< Valuable::Attribute *, Valuable::StyleValue > &expanded)
	If attribute supports shorthand properties, this should be used to parse those. More...

Node *	host () const
	The host object of the value object (is any). More...

virtual bool	isChanged () const

virtual bool	isValueDefinedOnLayer (Layer layer) const
	Check if the given layer defines a value. More...

bool	layerForSerialization (SerializationOptions flags, Layer &layer) const

const QByteArray &	name () const
	Returns the name of the object.

const Attribute &	operator= (const Attribute &)
	Create a copy of the given Attribute WITHOUT the link to host, listeners, or the attribute name. More...

Attribute *	ownerShorthand () const

QByteArray	path () const
	Returns the path (separated by '/'s) from the root.

void	removeHost ()
	Sets the host pointer to zero and removes this object from the host. More...

bool	removeListener (Node *listener, int role=ALL_ROLES)
	Removes a listener from the listener list. More...

bool	removeListener (long id)
	Removes a listener from the listener list. More...

void	removeListeners (int role=ALL_ROLES)
	Removes listeners from the listener list.

virtual ArchiveElement	serialize (Archive &archive) const
	The object is serialized using its name as a tag name. More...

virtual bool	set (float v, Layer layer=USER, ValueUnit unit=VU_UNKNOWN)
	Sets the value of the object.

virtual bool	set (int v, Layer layer=USER, ValueUnit unit=VU_UNKNOWN)
	Sets the value of the object.

virtual bool	set (const QString &v, Layer layer=USER, ValueUnit unit=VU_UNKNOWN)
	Sets the value of the object.

virtual bool	set (const Nimble::Vector2f &v, Layer layer=USER, QList< ValueUnit > units=QList< ValueUnit >())
	Sets the value of the object.

virtual bool	set (const Nimble::Vector3f &v, Layer layer=USER, QList< ValueUnit > units=QList< ValueUnit >())
	Sets the value of the object.

virtual bool	set (const Nimble::Vector4f &v, Layer layer=USER, QList< ValueUnit > units=QList< ValueUnit >())
	Sets the value of the object.

virtual bool	set (const StyleValue &value, Layer layer=USER)
	Sets the value of the object.

virtual void	setAsDefaults ()
	Sets the current USER attribute value as the default value and clears the USER value. More...

void	setName (const QByteArray &s)
	Sets the name of the object.

void	setOwnerShorthand (Attribute *owner)

virtual QByteArray	type () const
	Get the type id of the attribute. More...

Public Member Functions inherited from Valuable::Serializable
virtual bool	deserialize (const ArchiveElement &element)=0
	Deserializes (reads) this object from serializer element. More...

virtual bool	deserializeXML (const DOMElement &element)
	Deserializes (reads) this object from an XML element. More...

bool	isSerializable () const

void	setSerializable (bool v)

Protected Member Functions
virtual void	emitDelete ()
	Invokes the change valueDeleted function of all listeners.

Friends
class	Node

Detailed Description

The base class for value objects.

Typical child classes include some POD (plain old data) elements (floats, ints, vector2) etc, that can be accessed through the API. The Attributes have names (QString), that can be used to access Attributes that are stored inside Node objects.

It is also possible to add listeners to values, so that if a value is changed, then a call-back to some other object is followed. The listener-API is a bit hard-core, but it has plenty of power when you need to track the state of other objects.

See Also: Node

Examples:: AttributesExample.cpp.

Member Enumeration Documentation

enum Valuable::Attribute::Layer

Attribute has multiple independent attribute values on LAYER_COUNT different layers.

The real effective value of the attribute comes from an active layer that has the highest priority. By default only DEFAULT layer has value (is enabled). Layer numerical value also means the layer priority, DEFAULT layer has the lowest priority, while STYLE_IMPORTANT has the highest priority.

Enumerator
DEFAULT	Default, usually set in the constructor.
STYLE	Set from a CSS file.
USER	Set from a C++/JS code or by interaction / animators.
STYLE_IMPORTANT	!important rules from CSS file

enum Valuable::Attribute::ValueUnit

Units of a value.

Enumerator
VU_PXS	Value defined in pixels.
VU_PERCENTAGE	Value defined in percentage (100% == 1.0f)
VU_EMS	Length value defined by font-size.
VU_EXS	Length value defined by x-height of the current font.

Constructor & Destructor Documentation

Valuable::Attribute::Attribute ( const Attribute & o )

Create a copy of the given Attribute WITHOUT the link to host, listeners, or the attribute name.

So only the values and transit parameter are copied.

Valuable::Attribute::Attribute	(	Node *	host,
		const QByteArray &	name,
		bool	transit = `false`
	)

Constructs a new value object and attaches it to its host.

Parameters

host	The host object. This object is automatically added to the host.
name	The name (or id) of this attribute. Names are typically human-readable. The names should not contain white-spaces as they may be used in XML files etc.
transit	Should value changes be transmitted forward. This is related to future uses, and can be largely ignored at the moment.

Member Function Documentation

long Valuable::Attribute::addListener	(	ListenerFunc	func,
		int	role = `CHANGE_ROLE`
	)

Adds a listener that is invoked whenever the value is changed.

Returns an id that can be used to remove the listener later.

Parameters

func	listener function
role	when should the listener function be called

Returns: listener id

See Also: removeListener

Examples:: AttributesExample.cpp.

long Valuable::Attribute::addListener	(	Node *	listener,
		ListenerFunc	func,
		int	role = `CHANGE_ROLE`
	)

Adds a listener that is invoked whenever the value is changed.

Returns an id that can be used to remove the listener later. The listener is removed when the listener object is deleted. This function can fail and return -1 if the target listener is being destroyed when this function is called.

Parameters

listener	listener that owns the callback
func	listener function
role	when should the listener function be called

Returns: listener id or -1 on failure

See Also: removeListener

long Valuable::Attribute::addListener	(	v8::Persistent< v8::Function >	func,
		int	role = `CHANGE_ROLE`
	)

Adds a JavaScript listener that is invoked whenever the value is changed.

Parameters

func	listener function
role	when should the listener function be called

Returns: listener id that can be used to remove the listener with removeListener

See Also: removeListener

virtual float Valuable::Attribute::asFloat	(	bool *const	ok = `0`,
		Layer	layer = `LAYER_CURRENT`
	)		const

virtual

Converts the value object in a floating point number.

Parameters

ok	If non-null, *ok is set to true/false on success/error

Returns: Object as a float, the default implementation returns 0.0f

virtual int Valuable::Attribute::asInt	(	bool *const	ok = `0`,
		Layer	layer = `LAYER_CURRENT`
	)		const

virtual

Converts the value object in an integer.

Parameters

ok	If non-null, *ok is set to true/false on success/error

Returns: Object as a int, the default implementation returns zero

virtual QString Valuable::Attribute::asString	(	bool *const	ok = `0`,
		Layer	layer = `LAYER_CURRENT`
	)		const

virtual

Converts the value object to a string.

Parameters

ok	If non-null, *ok is set to true/false on success/error

Returns: Object as a string, the default implementation returns an empty string

virtual Attribute* Valuable::Attribute::attribute ( const QByteArray & name ) const

virtual

Gets an Attribute with the given name.

Parameters

name	Attribute name to search for

Returns: Null if no object can be found

Reimplemented in Valuable::Node, Valuable::Node, and Valuable::AttributeAlias.

Examples:: AttributesExample.cpp.

virtual void Valuable::Attribute::clearValue ( Layer layer )

virtual

Unsets the value from a specific layer.

Parameters

layer layer to clear, must not be DEFAULT, since DEFAULT layer should always be set

virtual void Valuable::Attribute::eventProcess	(	const QByteArray &	id,
		Radiant::BinaryData &	data
	)

virtual

Process a message.

This method is a key element in the event-passing system. It is used to deliver information between objects. The information contains two parts:

Identifier: A character string that gives the address for the adjustment
Data: A binary blob that contains information for the message

This function is overridden in number of classes that need to receive and process events. In a typical case, when overriding this function, you should either process the message, or call the function of the parent class.

void MyClass::eventProcess(const QByteArray & type, Radiant::BinaryData & data)
{
  if(type == "jump")
    doJump();
  else if(type == "crawl") {
    bool ok;
    int speed = data.readInt32(&ok);
    if(ok)
      doCrawl(speed);
  }
  else
    Parent::eventProcess(type, data);
}

Parameters

id	The indentifier for the message. Typically this is quite human-readable
data	Binary blob that contains the argument data in easily parseable format.

virtual bool Valuable::Attribute::handleShorthand	(	const Valuable::StyleValue &	value,
		Radiant::ArrayMap< Valuable::Attribute *, Valuable::StyleValue > &	expanded
	)

virtual

If attribute supports shorthand properties, this should be used to parse those.

For example "background: url('image.png') repeat" is a shorhand for setting background-image to "url('image.png')" and background-repeat to "repeat".

Parameters

[in]	value	shorthand value
[out]	expanded	shorthand property split to parts. With the previous background-example map should have two values.

Returns: true if shorthand was successfully handled

See Also: http://www.w3.org/TR/CSS21/about.html#shorthand

Reimplemented in Valuable::AttributeFlagsT< T >, Valuable::AttributeFlagsT< EdgeFlags >, Valuable::AttributeFlagsT< Flags >, Valuable::AttributeFlagsT< MultiTouch::TrackedObjectType >, Valuable::AttributeFlagsT< LimitBehaviorFlags >, Valuable::AttributeFrame, Valuable::AttributeSizeT< ElementType, SizeClass, ElementAttribute >, Valuable::FlagAliasT< T >, Stylish::AttributeFont, Valuable::AttributeAlias, Stylish::AttributeBorder, and Stylish::AttributeBackground.

Node* Valuable::Attribute::host ( ) const

inline

The host object of the value object (is any).

Returns: Pointer to the host

virtual bool Valuable::Attribute::isChanged ( ) const

virtual

Returns: true if the current value of the object is different from the default value. Default implementation always returns true

virtual bool Valuable::Attribute::isValueDefinedOnLayer ( Layer layer ) const

virtual

Check if the given layer defines a value.

Parameters

layer layer to check

Returns: true if the given value defines a layer; otherwise false

const Attribute& Valuable::Attribute::operator= ( const Attribute & )

Create a copy of the given Attribute WITHOUT the link to host, listeners, or the attribute name.

So only the values and transit parameter are copied.

void Valuable::Attribute::removeHost ( )

Sets the host pointer to zero and removes this object from the host.

bool Valuable::Attribute::removeListener	(	Node *	listener,
		int	role = `ALL_ROLES`
	)

Removes a listener from the listener list.

Returns: True if any items from the list were removed, otherwise false

bool Valuable::Attribute::removeListener ( long id )

Removes a listener from the listener list.

Parameters

id	listener id, same as the return value in addListener

Returns: True if any items from the list were removed, otherwise false

virtual ArchiveElement Valuable::Attribute::serialize ( Archive & archive ) const

virtual

The object is serialized using its name as a tag name.

Parameters

archive Serialization archive that is used to create new elements.

Returns: Serialized object as an ArchiveElement

Implements Valuable::Serializable.

virtual void Valuable::Attribute::setAsDefaults ( )

inlinevirtual

Sets the current USER attribute value as the default value and clears the USER value.

virtual QByteArray Valuable::Attribute::type ( ) const

inlinevirtual

Get the type id of the attribute.

Returns: type of the attribute

Reimplemented in MultiWidgets::Widget, Luminous::MultiHead::Window, Luminous::MultiHead::Area, MultiWidgets::Operator, and Valuable::AttributeAlias.

Public Types

Public Member Functions

Protected Member Functions

Friends

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
