JavaScriptOperator.js

This example shows how to create custom operators in JavaScript code using MultiWidgets.JavaScriptOperator.

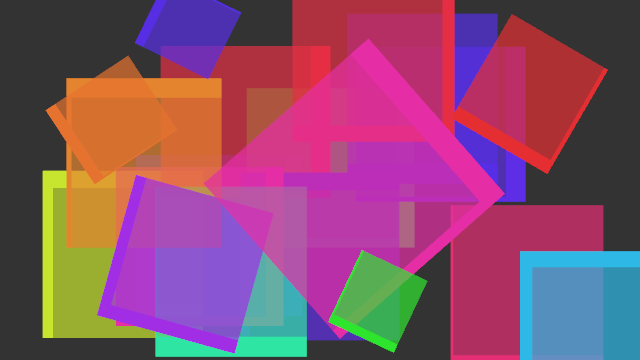

Screenshot of JavaScriptOperator example

This example will show how to override MultiWidgets.Operator.update() and MultiWidgets.Operator.input() -functions in JavaScript. We will also override MultiWidgets.Operator.reset()-function to make it possible to reset the operator to its initial state. The example will follow similar code structure as used in JavaScriptWidget.js.

There is a initialization loop that creates some text widgets and adds our custom operator to all of those widgets.

// Create 20 widgets and add those the scene
var appsize = $.app.mainLayer().size();
for (var i = 0; i < 20; ++i) {
  var w = new MultiWidgets.TextWidget();
  w.setSize(150, 150);
  w.setFontSize(12.0);
  w.setCenterLocation(new Nimble.Vector2f(
    (0.2+0.6*Math.random()) * appsize.width(),
    (0.2+0.6*Math.random()) * appsize.height()));

  // Set bright background colors to widgets by choosing hue randomly
  var c = Radiant.ColorUtils.hsvTorgb(new Radiant.Color(Math.random(), 0.8, 0.9, 0.7));
  w.setBackgroundColor(c);

  // Default border settings, non-transparent version of the background color
  c.setAlpha(1.0);
  w.setBorderColor(c);
  w.setBorderStyle(Stylish.Border.STYLE_SOLID);

  // Add our custom operator to the widget
  w.addOperator(create());
  $.app.mainLayer().addChild(w);
}

The actual operator is created in function create. We start the initialization by instantiating a new MultiWidgets.JavaScriptOperator.

function create() {
  // All custom operators created in JavaScript are instances of JavaScriptOperator
  var o = new MultiWidgets.JavaScriptOperator();

After initialization, we add all overriden functions to the operator, and finally we initialize all custom properties we need to add to the operator by calling reset(). We could have initialized the same values also in the create -function by writing code like o.borderAnimation = ...;

  o.reset();

  return o;
}

We will override MultiWidgets.Operator.update with a javascript function by calling MultiWidgets.JavaScriptOperator.onUpdate. Like with JavaScriptWidget, this will point to the operator itself when the function is called. All function prototypes are identical to the C++ versions.

Our version of the update will make a simple rotating effect by animating widget borders. The animation will fade in gradually in one second, and a operator will have a individual random rotation velocity.

  // Override the normal Operator::update
  o.onUpdate(function(w, frameInfo) {
    this.borderAnimation += frameInfo.dt() * this.borderAnimationSpeed;
    this.fadeIn = Math.min(1, this.fadeIn + frameInfo.dt());

    var x = this.fadeIn * 20.0 * Math.cos(this.borderAnimation);
    var y = this.fadeIn * 20.0 * Math.sin(this.borderAnimation);
    w.setBorderFrame(new Nimble.Frame4f(Math.max(0, y), Math.max(0, x), Math.max(0, -y), Math.max(0, -x)));
  });

Our MultiWidgets.Operator.reset-function is trivial, it will just set new initial state and reset fade-in effect.

  // Override the normal Operator::reset
  o.onReset(function() {
   // Puts the border animation to random state
   this.borderAnimation = Math.random() * 100;
   this.borderAnimationSpeed = -10+20*Math.random();

   this.fadeIn = 0;
  });

In the input handling, we just iterate all fingers and print some information about them in the widget. All C++ vector/list -types are automatically converted to JavaScript Arrays when reading a variable or calling a function. We make a temporary fingers Array so that the conversion happens only once in a frame per widget.

  // Override the normal Operator::input
  o.onInput(function(w, gm, trackedObjects, dt) {
    var fingers = trackedObjects.fingers();
    var str = "";
    for (var i = 0; i < fingers.length; i += 1) {
      var finger = fingers[i];
      str += sprintf("Finger #%d (%.1f %.1f)\n", finger.id(), finger.tipLocation().x, finger.tipLocation().y);
    }
    w.setText(str);
  });

You can also override MultiWidgets.Operator.added, MultiWidgets.Operator.removed, MultiWidgets.Operator.interactionBegin and MultiWidgets.Operator.interactionEnd, but this example doesn't use them.

  /*
  o.onAdded(function(widget) {
    // this was added to widget
  });
  o.onRemoved(function(widget) {
    // this was removed from widget
  });
  o.onInteractionBegin(function(widget, gm) {});
  o.onInteractionEnd(function(widget, gm) {});
  */

The full source code is shown below:

/* Copyright (C) 2007-2013 Multi Touch Oy, Finland, http://www.multitaction.com
 *
 * This file is part of MultiTouch Cornerstone.
 *
 * All rights reserved. You may use this file only for purposes for which you
 * have a specific, written permission from Multi Touch Oy.
 *
 */


function create() {
  // All custom operators created in JavaScript are instances of JavaScriptOperator
  var o = new MultiWidgets.JavaScriptOperator();

  // Override the normal Operator::update
  o.onUpdate(function(w, frameInfo) {
    this.borderAnimation += frameInfo.dt() * this.borderAnimationSpeed;
    this.fadeIn = Math.min(1, this.fadeIn + frameInfo.dt());

    var x = this.fadeIn * 20.0 * Math.cos(this.borderAnimation);
    var y = this.fadeIn * 20.0 * Math.sin(this.borderAnimation);
    w.setBorderFrame(new Nimble.Frame4f(Math.max(0, y), Math.max(0, x), Math.max(0, -y), Math.max(0, -x)));
  });

  // Override the normal Operator::reset
  o.onReset(function() {
   // Puts the border animation to random state
   this.borderAnimation = Math.random() * 100;
   this.borderAnimationSpeed = -10+20*Math.random();

   this.fadeIn = 0;
  });

  // Override the normal Operator::input
  o.onInput(function(w, gm, trackedObjects, dt) {
    var fingers = trackedObjects.fingers();
    var str = "";
    for (var i = 0; i < fingers.length; i += 1) {
      var finger = fingers[i];
      str += sprintf("Finger #%d (%.1f %.1f)\n", finger.id(), finger.tipLocation().x, finger.tipLocation().y);
    }
    w.setText(str);
  });

  /*
  o.onAdded(function(widget) {
    // this was added to widget
  });
  o.onRemoved(function(widget) {
    // this was removed from widget
  });
  o.onInteractionBegin(function(widget, gm) {});
  o.onInteractionEnd(function(widget, gm) {});
  */

  o.reset();

  return o;
}

// Create 20 widgets and add those the scene
var appsize = $.app.mainLayer().size();
for (var i = 0; i < 20; ++i) {
  var w = new MultiWidgets.TextWidget();
  w.setSize(150, 150);
  w.setFontSize(12.0);
  w.setCenterLocation(new Nimble.Vector2f(
    (0.2+0.6*Math.random()) * appsize.width(),
    (0.2+0.6*Math.random()) * appsize.height()));

  // Set bright background colors to widgets by choosing hue randomly
  var c = Radiant.ColorUtils.hsvTorgb(new Radiant.Color(Math.random(), 0.8, 0.9, 0.7));
  w.setBackgroundColor(c);

  // Default border settings, non-transparent version of the background color
  c.setAlpha(1.0);
  w.setBorderColor(c);
  w.setBorderStyle(Stylish.Border.STYLE_SOLID);

  // Add our custom operator to the widget
  w.addOperator(create());
  $.app.mainLayer().addChild(w);
}
