JavaScriptWidget.js

This example shows how to create custom widgets in JavaScript code using MultiWidgets.JavaScriptWidget.

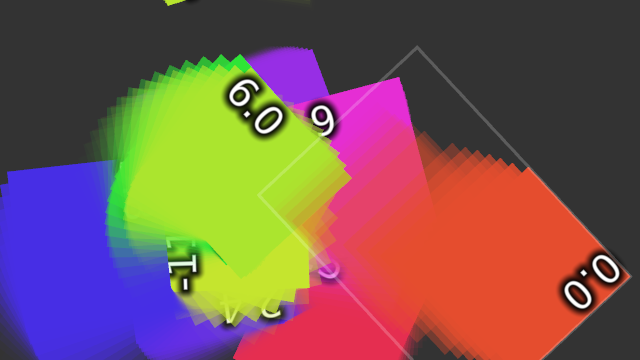

Screenshot of JavaScriptWidget example

Our custom widget will have overriden rendering, update and input processing functions. The widget will store its transformation matrix into short history buffer, and render previous locations of the widget as a faded color, somewhat similar to a simple motion blur.

Function create() works as a constructor for our custom widget and returns a new instance of MultiWidgets.JavaScriptWidget with our custom callbacks. This function is called in the initialization loop that creates 10 widgets. We place the widgets on the center of the screen and choose a nice random color with Radiant.ColorUtils.hsvTorgb.

// Create 10 widgets and add those the scene
var appsize = $.app.mainLayer().size();
for (var i = 0; i < 10; ++i) {
  var w = create();
  w.setSize(150, 150);
  w.setLocation(appsize.width() * 0.5, appsize.height() * 0.5);

  // Set bright background colors to widgets by choosing hue randomly
  w.setBackgroundColor(Radiant.ColorUtils.hsvTorgb(new Radiant.Color(Math.random(), 0.8, 0.9, 1.0)));
  $.app.mainLayer().addChild(w);
}

In create() we first make a new instance of JavaScriptWidget. After that we add some new properties to the widget.

• history is a list where we add the widget rectangle and transformation matrix every in update().
• historySize is the maximum size of the history list, in frames.
• boundingBox is what we return in our overriden version of MultiWidgets.Widget.boundingRect.
• rotationSpeed specifies how fast the widget rotates when it's not touched. This is animated in our update() -function.

Finally we set the widget origin to be something between -2 and 3, this way we can animate the center locations of the widgets and still get them to stay in a certain form.

function create() {
  // All custom widgets created in JavaScript are instances of JavaScriptWidget
  var w = new MultiWidgets.JavaScriptWidget();

  // We add some custom properties to the widget
  w.history = [];
  w.historySize = 15;
  w.boundingBox = w.borderBox();
  w.rotationSpeed = 0;

  // Set random origin to widgets to make then have an offset when animating them
  w.setOrigin(new Nimble.Vector2f(Math.random()*5-2, Math.random()*5-2));

We can override MultiWidgets.Widget.update -function by registering a new function as a parameter to MultiWidgets.JavaScriptWidget.onUpdate. Like with all JavaScriptWidget callbacks, this will point to the widget itself when the function is called. All function prototypes are identical to the C++ versions.

Update will rotate idle widgets and store the transformation matrix to the history list in parent coordinate system. Then it will go through the history, calculate new bounging box based on the rectangles in the history, and finally convert the bounding box back to the widget coordinate system, as required by MultiWidgets.Widget.boundingRect.

  w.onUpdate(function(frameInfo) {
    // rotate widgets with randomly changing rotation speed unless the widget has any interaction
    if (!this.hasInteraction()) {
      w.rotationSpeed += (Math.random() - 0.5);
      this.setRotationAboutCenter(this.rotation() + frameInfo.dt() * w.rotationSpeed);
    }

    // On every frame we save the transformation matrix in history.
    // We also need to store the current bounding box in parent coordinates
    // in the history since we want to calculate exact bounding box for the
    // widget, including the motion blur / shadow animation.
    var matrix = this.transform();
    var rect = new Nimble.Rectangle(this.borderBox());
    rect.transform(matrix);

    this.history.push([rect, this.transform3D()]);
    // limit the history size to this.historySize
    if (this.history.length > this.historySize) {
      this.history.shift();
    }

    // Calculate the bounding box that will containt the whole rendered widget
    for (var i = 0; i < this.history.length-1; i++) {
      rect = Nimble.Rectangle.merge(rect, this.history[i][0]);
    }
    // convert the rectangle back to widget coordinate system
    rect.transform(matrix.inverse());
    this.boundingBox = rect.boundingBox();
  });

In our custom background renderer we go though the history and render the widget using the stored transformations. We set the alpha value in the fill color so that older rects are more transparent.

  // Override the normal Widget::renderBackground
  // This version will render widget history as a "shadow"
  w.onRenderBackground(function(r) {
    var style = new Luminous.Style();
    var bg = this.backgroundColor();
    for (var i = 0; i < this.history.length; i++) {
      // Older samples have smaller alpha
      var opacity = (i+1)/this.history.length;
      bg.setAlpha(opacity * opacity);
      style.setFillColor(bg);
      // In the history we have stored the transformation matrix of the widget relative to the parent
      // Replace the transform with the transform stored in the history and render the widget as a rectangle
      r.popTransform();
      r.pushTransformRightMul(this.history[i][1]);
      r.drawRect(this.contentBox(), style);
    }
  });

In renderBorder we visualize exactly the same thing we return in boundingRect, but only in active widgets. Since we have overriden the normal MultiWidgets.Widget.renderBorder, the default border isn't rendered at all.

  // Override the normal Widget::renderBorder
  // Visualize the bounding box on widgets that have interaction
  w.onRenderBorder(function(r) {
    if (!this.hasInteraction())
      return;
    var style = new Luminous.Style();
    style.setStrokeColor(1,1,1,0.2);
    style.setStrokeWidth(3);
    // boundingBox is updated on update
    r.drawRect(this.boundingBox, style);
  });

The actual content of the widget is the text that contains the rotation speed of the widget.

  // Widget content is a text that contains the current rotation speed of the widget
  w.onRenderContent(function(r) {
    var style = new Luminous.TextStyle();
    // Render the text white with black glow
    style.setFillColor(1,1,1,1);
    style.setGlowColor(0,0,0,1);
    style.setGlow(0.5);
    style.setPointSize(30);
    r.drawText(this.rotationSpeed.toFixed(1), this.contentBox(), style);
  });

Any custom input handling in JavaScriptWidget must be handled in processInput. We still have normal input-flags enabled in the widget, so we are not overriding any normal behaviour, we are just adding new functionality.

In processInput we send all widgets to fly towards any fingers on the screen.

  // On input we animate all widgets towards all fingers on screen
  w.onProcessInput(function(gm, dt) {
    for (var i = 0; i < gm.clippedObjectCount(); i++) {
      var finger = gm.getClippedObject(i).asFinger();
      if (finger.isNull())
        continue;
      var floc = this.mapToParent(gm.project(finger.tipLocation()));
      var wloc = this.location();
      var dir = new Nimble.Vector2f(floc.x - wloc.x, floc.y - wloc.y);
      this.setVelocity(dir.x*0.1 + this.velocity().x, dir.y*0.1 + this.velocity().y);
    }
  });

Whenever a widget renders something outside its borders, it's also required to implement a custom MultiWidgets.Widget.boundingRect -function, since the bounding rectangle is used for clipping. All work is already been done in update(), we just return the ready Nimble.Rectf.

  // Override Widget::onBoundingRect. This is used for render clipping,
  // so the returned value must include everything that is rendered in
  // any of the render functions
  w.onBoundingRect(function() {
    return this.boundingBox;
  });

The full source code is shown below:

/* Copyright (C) 2007-2013 Multi Touch Oy, Finland, http://www.multitaction.com
 *
 * This file is part of MultiTouch Cornerstone.
 *
 * All rights reserved. You may use this file only for purposes for which you
 * have a specific, written permission from Multi Touch Oy.
 *
 */


function create() {
  // All custom widgets created in JavaScript are instances of JavaScriptWidget
  var w = new MultiWidgets.JavaScriptWidget();

  // We add some custom properties to the widget
  w.history = [];
  w.historySize = 15;
  w.boundingBox = w.borderBox();
  w.rotationSpeed = 0;

  // Set random origin to widgets to make then have an offset when animating them
  w.setOrigin(new Nimble.Vector2f(Math.random()*5-2, Math.random()*5-2));

  // Override the normal Widget::renderBackground
  // This version will render widget history as a "shadow"
  w.onRenderBackground(function(r) {
    var style = new Luminous.Style();
    var bg = this.backgroundColor();
    for (var i = 0; i < this.history.length; i++) {
      // Older samples have smaller alpha
      var opacity = (i+1)/this.history.length;
      bg.setAlpha(opacity * opacity);
      style.setFillColor(bg);
      // In the history we have stored the transformation matrix of the widget relative to the parent
      // Replace the transform with the transform stored in the history and render the widget as a rectangle
      r.popTransform();
      r.pushTransformRightMul(this.history[i][1]);
      r.drawRect(this.contentBox(), style);
    }
  });

  // Override the normal Widget::renderBorder
  // Visualize the bounding box on widgets that have interaction
  w.onRenderBorder(function(r) {
    if (!this.hasInteraction())
      return;
    var style = new Luminous.Style();
    style.setStrokeColor(1,1,1,0.2);
    style.setStrokeWidth(3);
    // boundingBox is updated on update
    r.drawRect(this.boundingBox, style);
  });

  // Widget content is a text that contains the current rotation speed of the widget
  w.onRenderContent(function(r) {
    var style = new Luminous.TextStyle();
    // Render the text white with black glow
    style.setFillColor(1,1,1,1);
    style.setGlowColor(0,0,0,1);
    style.setGlow(0.5);
    style.setPointSize(30);
    r.drawText(this.rotationSpeed.toFixed(1), this.contentBox(), style);
  });

  w.onUpdate(function(frameInfo) {
    // rotate widgets with randomly changing rotation speed unless the widget has any interaction
    if (!this.hasInteraction()) {
      w.rotationSpeed += (Math.random() - 0.5);
      this.setRotationAboutCenter(this.rotation() + frameInfo.dt() * w.rotationSpeed);
    }

    // On every frame we save the transformation matrix in history.
    // We also need to store the current bounding box in parent coordinates
    // in the history since we want to calculate exact bounding box for the
    // widget, including the motion blur / shadow animation.
    var matrix = this.transform();
    var rect = new Nimble.Rectangle(this.borderBox());
    rect.transform(matrix);

    this.history.push([rect, this.transform3D()]);
    // limit the history size to this.historySize
    if (this.history.length > this.historySize) {
      this.history.shift();
    }

    // Calculate the bounding box that will containt the whole rendered widget
    for (var i = 0; i < this.history.length-1; i++) {
      rect = Nimble.Rectangle.merge(rect, this.history[i][0]);
    }
    // convert the rectangle back to widget coordinate system
    rect.transform(matrix.inverse());
    this.boundingBox = rect.boundingBox();
  });

  // On input we animate all widgets towards all fingers on screen
  w.onProcessInput(function(gm, dt) {
    for (var i = 0; i < gm.clippedObjectCount(); i++) {
      var finger = gm.getClippedObject(i).asFinger();
      if (finger.isNull())
        continue;
      var floc = this.mapToParent(gm.project(finger.tipLocation()));
      var wloc = this.location();
      var dir = new Nimble.Vector2f(floc.x - wloc.x, floc.y - wloc.y);
      this.setVelocity(dir.x*0.1 + this.velocity().x, dir.y*0.1 + this.velocity().y);
    }
  });

  // Override Widget::onBoundingRect. This is used for render clipping,
  // so the returned value must include everything that is rendered in
  // any of the render functions
  w.onBoundingRect(function() {
    return this.boundingBox;
  });

  // Stop the rotation on interaction
  w.onInteractionBegin(function() {
    w.rotationSpeed = 0;
  });

  return w;
}

// Create 10 widgets and add those the scene
var appsize = $.app.mainLayer().size();
for (var i = 0; i < 10; ++i) {
  var w = create();
  w.setSize(150, 150);
  w.setLocation(appsize.width() * 0.5, appsize.height() * 0.5);

  // Set bright background colors to widgets by choosing hue randomly
  w.setBackgroundColor(Radiant.ColorUtils.hsvTorgb(new Radiant.Color(Math.random(), 0.8, 0.9, 1.0)));
  $.app.mainLayer().addChild(w);
}
