FlipGridWidget

This example demonstrates how to create a custom widget as a plugin in MT Showcase. It adds a grid of flip widgets containing images to Showcase.

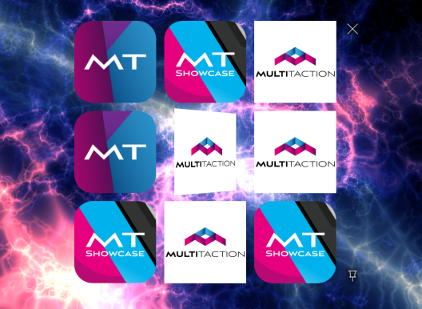

Screenshot of the FlipGrid widget.

Create a custom version of Cornerstone's FlippingWidget.

#pragma once

#include <MultiWidgets/FlippingWidget.hpp>

namespace ShowcaseExamples
{
  class CustomFlipWidget : public MultiWidgets::FlippingWidget
  {
  public:
    // Constructor
    CustomFlipWidget(MultiWidgets::WidgetPtr parent, QString contentPath, bool movable);

    // Flip to the next image
    void flip();
  };
}

We give the CustomFlipWidget a folder path in the constructor. It searches the folder for all .png and .jpg images, and creates a MultiWidgets::ImageWidget for each and uses MultiWidgets::FlippingWidget::addItem to add them to its contents.

We customize the behavior of the flip widget depending on if it's movable. A movable flip widget gets a CSS class to apply additional CSS rules, closes after it's been idle for a while, and its scale is limited. It flips when it's first created, and flips again when a user taps it.

Flip widget in grid is not movable. It flips on its own in the grid at regular intervals, but the interval and initial timer is randomized so each flip widget flips on its own pace for a playful effect. It creates a new movable flip widget when it's tapped.

#include "CustomFlipWidget.hpp"

#include <Showcase.hpp>

#include <MultiWidgets/AfterIdleOperator.hpp>
#include <MultiWidgets/FadeAnimator.hpp>
#include <MultiWidgets/ImageWidget.hpp>
#include <MultiWidgets/LimitScaleOperator.hpp>
#include <MultiWidgets/TimerOperator.hpp>

#include <Nimble/Random.hpp>

#include <QDir>

namespace ShowcaseExamples
{
  CustomFlipWidget::CustomFlipWidget(MultiWidgets::WidgetPtr parent, QString contentPath, bool movable)
    : FlippingWidget(parent)
  {
    addCSSClass("flip-grid");

    // Read all .jpg and .png images in the given folder and order them alphabetically by name
    QDir contentDir(contentPath);
    QStringList nameFilters = QStringList() << "*.jpg" << "*.png";
    QDir::Filters filters = QDir::Files | QDir::Readable;
    QDir::SortFlags orderBy = QDir::Name | QDir::LocaleAware;
    QFileInfoList entries = contentDir.entryInfoList(nameFilters, filters, orderBy);

    // Add an image widget to the flip widget for each found image file
    for (const QFileInfo & entry : entries) {
      MultiWidgets::ImageWidgetPtr image = MultiWidgets::create<MultiWidgets::ImageWidget>();
      image->setSource(entry.absoluteFilePath());
      addItem(image);
    }

    if (movable) {
      // This is a stand-alone flip widget
      addCSSClass("detached");

      // Close the widget after a timeout
      auto closeFunc = [] (MultiWidgets::Widget & widget) {
        MultiWidgets::FadeAnimator::fadeOutAndDelete(widget, 0.2f);
      };
      auto timeout = std::make_shared<MultiWidgets::AfterIdleApplyLambdaOperator>(10.f, closeFunc, true);
      addOperator(timeout);

      // Limit the scale of the widget
      addOperator(std::make_shared<MultiWidgets::LimitScaleOperator>());

      // Flip the widget when it's spawned
      flip();

      // Flip the widget when it's tapped
      eventAddListener("single-tap", [this] {
        flip();
      });
    }
    else {
      // This is a flip widget in the grid
      // Make the widget flip in the grid
      auto flipFunc = [] (MultiWidgets::Widget & widget) {
        if (auto flipWidget = dynamic_cast<CustomFlipWidget*>(&widget))
          flipWidget->flip();
      };
      auto & random = Nimble::RandomUniform::instance();
      // Randomize the interval and initial timer, so each widget flips at its own pace
      auto flipperOp = std::make_shared<MultiWidgets::TimerOperator>(random.rand0X(10.f) + 10.f, flipFunc, false);
      flipperOp->setTimer(random.rand0X(10.f));
      addOperator(flipperOp);

      eventAddListener("single-tap", [this, contentPath] {
        // Create a new stand-alone widget when widget in the grid is tapped
        auto hostWidget = Showcase::Showcase::instance()->ui()->mainWidget();
        auto newWidget = MultiWidgets::create<CustomFlipWidget>(hostWidget, contentPath, true);

        // Offset the new widget to the right and down from the original widget
        Nimble::Vector2f onMain = mapToParent(*hostWidget, Nimble::Vector2f(0.f, 0.f));
        newWidget->setLocation(onMain + Nimble::Vector2f(10.f, 10.f));

        // Raise the new widget to the top
        newWidget->raiseToTop();
      });
    }
  }

  void CustomFlipWidget::flip()
  {
    // Flip to the next image. Automatically returns to the start if this was the last image
    setIndex(index() + 1);
  }
}

Next create the grid widget, inherit from MultiWidgets::Widget.

#pragma once

#include <Showcase/WidgetComponent.hpp>

namespace ShowcaseExamples
{
  // Inherit from Widget
  class FlipGridWidget : public MultiWidgets::Widget
  {
  public:
    // Constructor
    FlipGridWidget();

    // Check if grid needs to be reloaded in update
    virtual void update(const MultiWidgets::FrameInfo & frameInfo) override;

  private:
    // Clear and reload the grid contents
    void reloadGrid();

    // Container widget for the grid contents
    MultiWidgets::WidgetPtr m_container;

    // Path to the content folder. This is configured in the Editor
    Valuable::AttributeString m_contentDir;

    // Used for reloading the grid when contents change
    bool m_dirty;
  };
}

Set up an attribute for the grid content folder. This attribute will be configurable in the Showcase Editor. We also create a container widget for the grid contents. It uses flex box layout to layout the widgets in a grid. When the content folder or the grid's size changes, reload the grid contents.

When reloading, we first clear the old content. Then search for all subfolders in the content folder. We will arrange the content into an N x N grid, calculate the grid size for the number of subfolders found. Then calculate the size for each item in the grid, while leaving some margin between the items.

Then create our custom flip widget for each subfolder, set its size and add it to the grid.

Finally we use the SHOWCASE_WIDGET_COMPONENT macro to define our FlipGridWidget as a Showcase component 'flip-grid'.

#include "FlipGridWidget.hpp"

#include "CustomFlipWidget.hpp"

#include <QDir>

namespace ShowcaseExamples
{
  FlipGridWidget::FlipGridWidget()
    : m_contentDir(this, "content-dir", QString())
    , m_dirty(false)
  {
    setCSSType("FlipGridWidget");

    // Container for the flip widgets
    m_container = MultiWidgets::create<MultiWidgets::Widget>(this);
    m_container->addCSSClass("grid-container");

    // Reload grid when the content folder or grid size changes
    m_contentDir.addListener([this] {
      m_dirty = true;
    });
    attribute("size")->addListener([this] {
      m_dirty = true;
    });
  }

  void FlipGridWidget::update(const MultiWidgets::FrameInfo &)
  {
    // Reload grid if needed
    if (m_dirty) {
      reloadGrid();
      m_dirty = false;
    }
  }

  void FlipGridWidget::reloadGrid()
  {
    // Clear old content
    m_container->removeChildren();

    if (m_contentDir->isEmpty())
      return;

    // Read all subfolders in the given folder and order them alphabetically by name
    QDir contentDir(m_contentDir);
    QDir::Filters filters = QDir::Dirs | QDir::NoDotAndDotDot | QDir::Readable;
    QDir::SortFlags orderBy = QDir::Name | QDir::LocaleAware;
    QFileInfoList subDirs = contentDir.entryInfoList(filters, orderBy);
    int itemCount = subDirs.size();
    if (itemCount == 0)
      return;

    // Widgets are arranged to a grid, calculate the item size to fit in the grid
    int gridSize = std::ceil(std::sqrt(itemCount));
    float margin = 15.f;
    float itemWidth = std::floor((width() - (gridSize * margin * 2)) / gridSize);
    float itemHeigth = std::floor((height() - (gridSize * margin * 2)) / gridSize);

    // Create a flip widget for each subfolder and set its size and margin
    for (const QFileInfo & subDir : subDirs) {
      auto item = MultiWidgets::create<CustomFlipWidget>(m_container, subDir.absoluteFilePath(), false);
      item->setSize(itemWidth, itemHeigth);
      item->setMargin(margin);
    }
  }
}

// Widget component definition
SHOWCASE_WIDGET_COMPONENT("flip-grid", ShowcaseExamples::FlipGridWidget)

We set up the style of the grid in CSS. Configure size, background color and input flags for the grid and flip widgets. We define display: flex for the container widget to make it use flex box layout. We also make the grid and movable flip widgets close if they're tossed out of the screen with remove-outside-parent.

FlipGridWidget {
  size: 1000px 1000px;
  background: transparent;
  /* Use remove-outside-parent lazy attribute to remove the widget if it's outside view */
  remove-outside-parent: true;
}

FlipGridWidget > .grid-container {
  size: 100% 100%;
  background: transparent;
  input-flags: pass-to-children;

  /* Use flex box layout to arrange the items in a grid */
  display: flex;
    flex-wrap: wrap;
}

FlippingWidget.flip-grid {
  background: transparent;
  size: 500px 500px;
  /* Disable scroll to flip the widget gesture */
  enable-flipping-gesture: false;
}

FlipGridWidget FlippingWidget.flip-grid {
  input-flags: single-taps;
}

FlippingWidget.flip-grid.detached {
  /* Use remove-outside-parent lazy attribute to remove the widget if it's outside view */
  remove-outside-parent: true;
}

Now we create our plugin package. First create a schema file that defines the 'flip-grid' component's slots, roles and attributes. We'll use some ready schema templates to define common widget attributes. Include widget.schema to make widget's location and scale configurable. Include fixed-size.schema to make the size configurable. Also include with-behaviour-operators.schema to add attributes such as 'Close after idle' and 'Snap to angle', and with-toolbar.schema to include 'Toolbar' attribute. We'll add a 'main' role to the component to enable adding it to the main layer in structure. We'll also define our content folder attribute. Match the attribute name with the FlipGridWidget's attribute, and set the attribute type to asset and mime-filters to 'inode/directory' to allow dropping a folder from the media library to this attribute.

{
  "includes" : [ "showcase-package:widget.schema",
                 "showcase-package:custom-schemas/fixed-size.schema",
                 "showcase-package:custom-schemas/with-behaviour-operators.schema",
                 "showcase-package:custom-schemas/with-toolbar.schema" ],

  "roles" : [ "main" ],

  "attributes" : [
    {
      "attribute-name": "content-dir",
      "mime-filters" : [ "inode/directory" ],
      "type" : "asset",
      "ui-name": "Content folder",
      "description": "Choose the media library folder that contains the source images for the grid. The folder should contain subfolders with the contents for the flip widgets. Each subfolder adds a flip widget to the grid, containing the images in that subfolder. Drag the folder from the media library into the input box."
    }
  ]
}

We'll also include a description file with a screenshot to show a desciption of this widget in the Showcase Editor.

<img src="flip-grid.png" />

<p>This is an example of an MT Showcase plugin widget. The widget shows a
collection of flip widgets in a grid. Each flip widget contains a series of
images. User can tap a widget in the grid to launch a copy of it and then tap
the widget to flip through the images. The widgets in the grid also flip on
their own at random intervals.</p>

<p>The grid is populated from a folder. Choose a folder from the media library.
The folder should contain subfolders that contain the images for the flip
widgets. Each subfolder creates one flip widget in the grid. Widgets are ordered
in rows alphabetically by the subfolder name.</p>

Finally create the package file, and define the files for the component.

{
  "name" : "Flip grid example",
  "package-version" : "1.0.0",
  "libraries" : [ "FlipGrid-SHOWCASE_VERSION" ],
  "required-showcase-version" : "SHOWCASE_VERSION",
  "components" : {
    "flip-grid" : {
      "type" : "ui",
      "data-folders" : [ "data" ],
      "css-files" : [ "flip-grid.css" ],
      "schema" : "flip-grid.schema",
      "description" : "flip-grid-description.html",
      "ui-name" : "Flip grid"
    }
  }
}

The final folder structure of the ready plugin package should look like this.

package/
├── data
│   └── flip-grid.css
├── flip-grid.package
├── flip-grid.schema
├── flip-grid-description.html
├── flip-grid.png
└── libFlipGrid-[version].so
