Divide.js

In this example we create a widget which spawns a new widget if it is tapped. Also the new widgets create new widgets that spawn widgets. We see how to use event listeners with JavaScript.

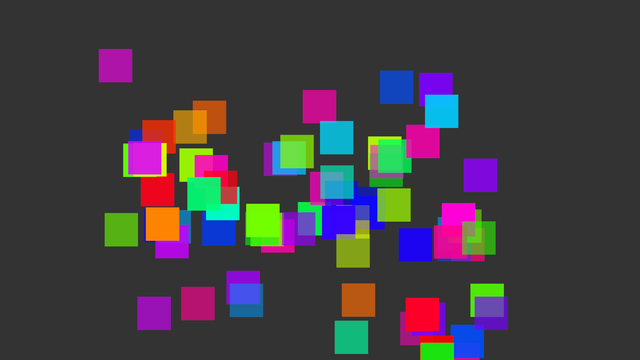

Screenshot of Divide example

The application is quite simple. We define root to be an alias of the main layer of the application and call createWidget-function. The first widget is created to the middle of the screen.

var root = $.app.mainLayer();

createWidget(root.width()/2, root.height()/2, 1.0, 0);

The logic of the program is embedded into createWidget-function. It takes the location, scale and rotation of the widget and creates a new widget given these parameters. After this, random velocity and color is generated and applied for the widget. The callback for the event single-tap set to be a call to createWidget. Finally we make sure that there is at most 100 widgets in the scene and then add the newly created widget into the scene.

function createWidget(x, y, scale, rotation) {
  var w = new MultiWidgets.Widget();
  w.setRotation(rotation);
  w.setScale(scale);
  w.setLocation(x, y);

  // Make a new random velocity
  var angle = Math.random()*Math.PI*2.0;
  var speed = 500.0 + Math.random()*1200.0;
  var vel = new Nimble.Vector2f(Math.cos(angle)*speed, Math.sin(angle)*speed);
  w.setVelocity(vel);

  // Create random color for the widget
  var color = new Radiant.Color();
  color.setHSVA(Math.random(), 1.0, 1.0, Math.random()*0.5 + 0.5);
  w.setBackgroundColor(color);

  // On single tap, create a new widget on the current widget location
  w.onSingleTap(function() {
    createWidget(w.x(), w.y(), w.scale(), w.rotation());
  });

  removeOld(100);

  // Add child to scene, also trigger the interaction timestamp
  w.touch();
  root.addChild(w);
  w.raiseToTop();
}

Search and removal for the oldest widget can be seen from the full source code below:

/* Copyright (C) 2007-2013 Multi Touch Oy, Finland, http://www.multitaction.com
 *
 * This file is part of MultiTouch Cornerstone.
 *
 * All rights reserved. You may use this file only for purposes for which you
 * have a specific, written permission from Multi Touch Oy.
 *
 */


var root = $.app.mainLayer();

createWidget(root.width()/2, root.height()/2, 1.0, 0);

function removeOld(maxChildren) {
  if(root.numChildren() > maxChildren) {
    // Find the widget that has largest lastInteractionTime
    var oldest = root.children().reduce(function(a, b) {
      var at = a.lastInteractionTime().secondsD();
      var bt = b.lastInteractionTime().secondsD();
      return at > bt ? b : a;
    });
    root.removeChild(oldest);
  }
}

function createWidget(x, y, scale, rotation) {
  var w = new MultiWidgets.Widget();
  w.setRotation(rotation);
  w.setScale(scale);
  w.setLocation(x, y);

  // Make a new random velocity
  var angle = Math.random()*Math.PI*2.0;
  var speed = 500.0 + Math.random()*1200.0;
  var vel = new Nimble.Vector2f(Math.cos(angle)*speed, Math.sin(angle)*speed);
  w.setVelocity(vel);

  // Create random color for the widget
  var color = new Radiant.Color();
  color.setHSVA(Math.random(), 1.0, 1.0, Math.random()*0.5 + 0.5);
  w.setBackgroundColor(color);

  // On single tap, create a new widget on the current widget location
  w.onSingleTap(function() {
    createWidget(w.x(), w.y(), w.scale(), w.rotation());
  });

  removeOld(100);

  // Add child to scene, also trigger the interaction timestamp
  w.touch();
  root.addChild(w);
  w.raiseToTop();
}
